Sinus Lift Instruments: Essential Tools for Successful Maxillary Sinus Elevation Procedures

Introduction to Sinus Lift Instruments

Sinus lift procedures, also known as maxillary sinus elevations, are critical surgical techniques in dental implantology. They enable dental professionals to augment bone height in the upper jaw, particularly in the posterior maxilla, where bone loss or sinus pneumatization often limits implant placement. Understanding the variety of sinus lift instruments is essential not only for clinicians but also for patients who want to learn about the safety and precision involved in these procedures.

This guide covers the main sinus lift instruments used during both the lateral window and crestal approach techniques, discusses material choices, sterilization protocols, and how modern technology enhances the safety and effectiveness of sinus elevation surgeries.

What is a Sinus Lift?

Before exploring the instruments, it is vital to briefly understand what a sinus lift entails. The maxillary sinus is an air-filled cavity located above the upper jaw. When teeth are lost or the bone resorbs, the sinus can expand, reducing available bone height for implants. A sinus lift raises the sinus membrane, creating space to add bone graft material to facilitate stable implant placement.

There are two primary techniques:

• Lateral Window Approach: A window is created on the lateral wall of the maxillary sinus to elevate the membrane.
• Crestal (Osteotome) Approach: Bone is accessed through the implant osteotomy site to lift the sinus membrane vertically.

Each method requires specific sinus elevation instruments designed for precision, safety, and minimal trauma.

Primary Sinus Lift Instruments: Categories and Uses

1. Osteotomes for Sinus Lift

Definition:
Osteotomes are slender, chisel-like instruments designed to carefully fracture or compress bone.

Use in Sinus Lift:
Primarily used in the crestal approach, osteotomes gently fracture the sinus floor, allowing for elevation of the sinus membrane through the implant osteotomy.

Features:

• Various diameters and lengths for progressive bone expansion
• Made from stainless steel or titanium for strength and corrosion resistance
• Handle designs to provide precise tactile feedback

Advantages:

• Minimally invasive compared to lateral window
• Reduced surgical time and swelling

2. Bone Grafting Instruments

These tools facilitate the placement and manipulation of graft materials within the sinus cavity.

Common Instruments Include:

• Bone Carriers: Long, slender syringes or spatulas designed to deliver particulate bone graft or putty into the sinus cavity.
• Bone Condensers: Used to gently pack and compress graft material, ensuring stability and avoiding displacement.
• Mixers and Scoops: For preparing graft material to the appropriate consistency.

Material:
Usually stainless steel for ease of sterilization and durability.

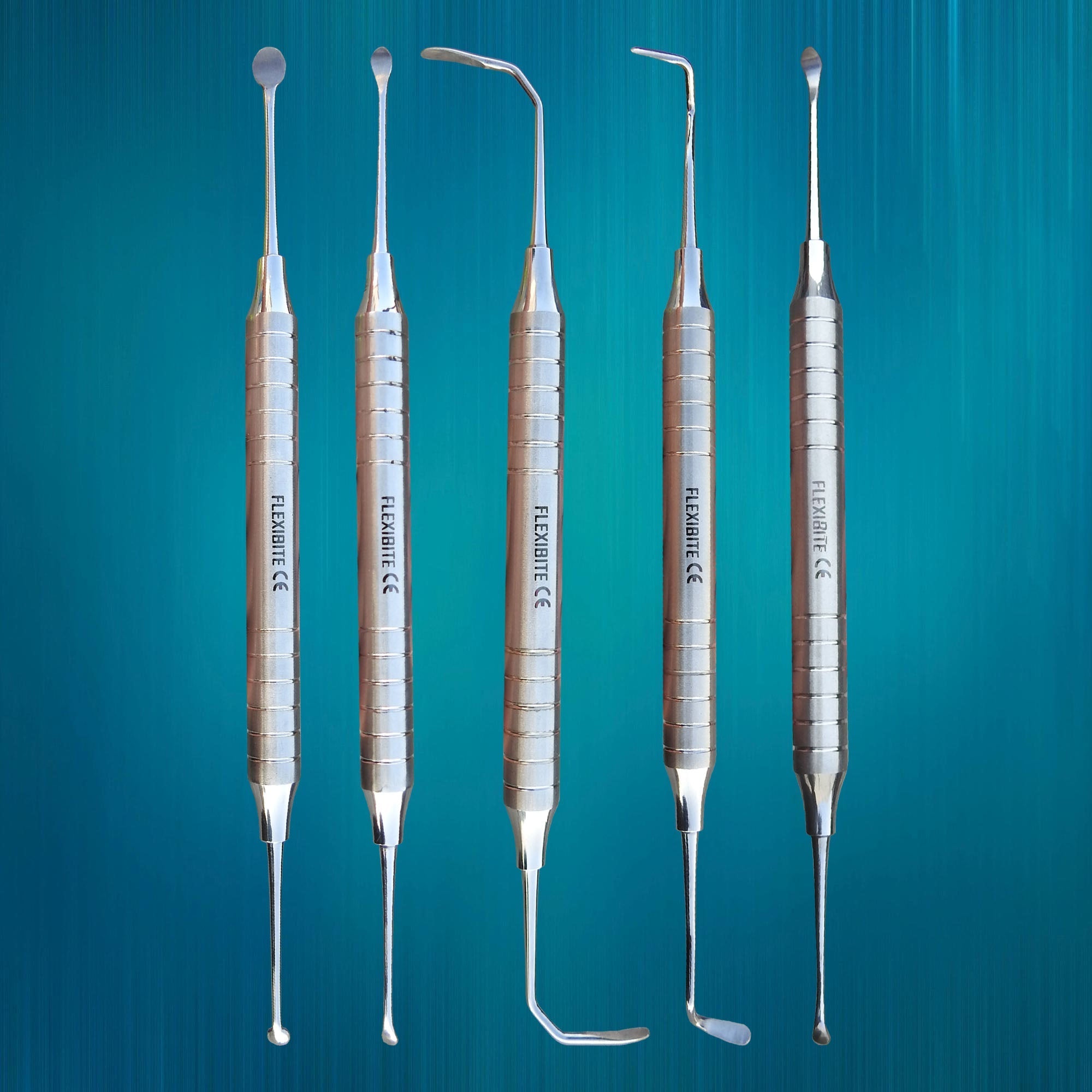

3. Sinus Membrane Elevation Tools

These delicate instruments are essential to carefully detach and elevate the Schneiderian membrane from the sinus floor without perforation.

Examples:

• Periosteal Elevators: Rounded or curved tips designed for gentle membrane separation.
• Ball-Tip Elevators: Blunt, atraumatic tips reduce risk of tearing the membrane.
• Micro-Elevators: For precise elevation in confined spaces.

Material:
Titanium is preferred in some cases for its lightweight and biocompatibility.

4. Piezoelectric Devices

Piezoelectric surgical units have revolutionized sinus lift procedures with their ultrasonic microvibrations.

Function:

• Allow precise bone cutting and sinus window creation with minimal damage to soft tissue.
• Reduce risk of membrane perforation due to selective cutting action.
• Offer better visibility and irrigation during surgery.

Common Attachments:

• Inserts designed specifically for sinus window osteotomies
• Tips for membrane elevation

Benefits:

• Enhanced safety and patient comfort
• Improved healing and reduced post-operative complications

5. Rotary Instruments and Surgical Burs

Rotary instruments such as surgical drills and burs are critical, especially for the lateral window technique.

Functions:

• Creating the lateral sinus window
• Initial osteotomy preparation

Types:

• Round burs for window outline
• Diamond burs for smoothening bone edges
• Specialized sinus burs to avoid membrane damage

Materials:
Usually stainless steel or tungsten carbide for durability and sharpness.

6. Hand Instruments and Ancillary Tools

These include a variety of tools essential for general manipulation and handling during sinus lift.

• Scalpels and Blades: For soft tissue incision.
• Suction Tips: To clear the surgical field, especially during graft placement.
• Retractors: To provide surgical access and visibility.

Comparing Instruments for Lateral Window vs. Crestal Approach

Material Considerations for Sinus Lift Instruments

Durability, sterility, and biocompatibility are essential when selecting instruments.

• Stainless Steel:
• Most commonly used
• Resistant to corrosion
• Easy to sterilize
• Cost-effective
• Titanium:
• Lightweight and corrosion-resistant
• Superior biocompatibility
• Often used in membrane elevators and delicate tools
• Piezoelectric Tips:
• Usually titanium-coated or made from special alloys to withstand ultrasonic vibrations

Sterilization and Maintenance of Sinus Lift Instruments

Proper sterilization maintains instrument longevity and patient safety.

• Cleaning: Instruments should be cleaned immediately after use to remove bone and tissue debris.
• Sterilization: Autoclaving is the gold standard for sterilizing sinus lift instruments. Instruments must be compatible with autoclave temperatures and pressure.
• Maintenance: Regular inspection for wear, corrosion, and sharpness, especially for rotary burs and osteotomes, is essential. Damaged instruments increase the risk of surgical complications.

Cost Considerations and Instrument Longevity

• Initial Investment: Piezoelectric devices and digital integration tools are high-cost but offer long-term benefits.
• Reusable Instruments: Osteotomes and hand instruments are durable with proper care.
• Consumables: Rotary burs and some piezo tips may require periodic replacement.
• Balancing Cost and Safety: Investing in quality instruments reduces procedural risk and enhances patient outcomes.

Safety Features and Precision Requirements

• Instruments must minimize trauma to the sinus membrane to avoid perforation, which can cause complications.
• Piezoelectric devices enhance precision and reduce risk.
• Osteotomes require skillful handling for controlled membrane elevation.
• Membrane elevators with blunt, atraumatic tips protect delicate tissue.
• Surgical burs designed to reduce heat generation and bone necrosis improve safety.

Integration with Digital Dentistry and Guided Surgery Systems

Modern sinus lift procedures increasingly utilize:

• CBCT Imaging: For accurate surgical planning, helping select appropriate instrument sizes and graft volumes.
• Surgical Guides: Custom guides based on digital planning can direct drills and osteotomes precisely.
• Piezoelectric Devices: Compatible with digital workflows, enhancing safety and precision in guided procedures.

These technologies optimize instrument use and improve surgical outcomes.

Addressing Common Patient Concerns About Sinus Lift Instruments

• Is the Procedure Safe? Advanced instruments like piezoelectric devices reduce risks significantly. Surgeons use precision tools designed to protect delicate membranes.
• Will the Surgery Be Painful? Minimally invasive instruments and techniques minimize trauma, swelling, and pain.
• Are Instruments Sterile? Strict sterilization protocols ensure instruments are fully sterilized before every procedure.
• How Complex Is the Surgery? The use of specialized tools allows surgeons to perform sinus lifts efficiently with high success rates.

Conclusion

Sinus lift instruments are vital to the success and safety of maxillary sinus elevation procedures in dental implant surgery. From osteotomes and bone grafting tools to advanced piezoelectric devices and rotary burs, each instrument has a specific role tailored to the surgical approach used. Material quality, sterilization, and integration with digital technologies further enhance outcomes, positioning dental practices as leaders in oral surgery care.

Understanding these tools provides dental professionals with confidence in technique and offers patients reassurance about the precision and safety of their sinus lift procedures.
